Above-floor multi-rip saw Precision sawing of round tubes Highlights Shortest cycle times with high flexibility Wide speed range for the use of HSS and carbide saw blades Individual sawing programs with cutting optimization Saving the sawing order data in recipes Fully automatic format change Simultaneous production of fixed and production lengths Automatic sawing
High performance saws Precise and economical saw cuts Highlights Use of carbide and HSS saw blades Saw feed by means of preloaded ball screw Saw blade guide on both sides Robust, precise and fast Cutting gap extension via hydraulics Optimized chip removal Technical data Material:Round, 4 edge, 6 edge,
Straightness measurement X-Line - Laser measuring system for straightness testing of rods and pipes Improved product quality through straightness measurement With our innovative laser technology, you can check the straightness of a round profile inline and with a single measuring routine. The measuring frame is installed directly in the line and contains at
Test lines - Non-destructive testing with fault sortingHighlightsMaximum guidance accuracy for the most demanding testing tasksFully automatic separation and feedingTesting possible without a gap (e.g. ultrasound for pipes)Precise marking of the tested fault locationsMultiple sorting depending on the test errorInterlinking with sawing systems to cut off imperfections or untested endsIntegration of geometry checks such
Non-destructive testing at speeds of up to 240 m/min sema test tables - Non-destructive testing at speeds of up to 240 m/min. Large diameter range Asymmetrical straightening roller shape High-precision measuring systems for angle and diameter adjustment Individual drives of the straightening rollers Max. set-up time: 10 min. with one operator Electronic handwheel
10-roll straightenerPrecise straightening of round tubesLarge diameter rangeAutomatic presetting of the straightenerAsymmetrical straightening roller shapeHigh-precision measuring systems for angle and diameter adjustmentIndividual drives of the straightening rollersMax. set-up time: 10 min. with one operator Electronic handwheel Type: RM 30 RM 50 RM 70 RM 100 RM 130 RM 150 RM
2-roller straightening and polishing machine Precision straightening of peeled or bright-drawn round bars Highlights Hydraulic quick-change roller device Max. 15 minutes change-over Motorized ruler adjustment 4-way column guide, torsion-resistant and 4-way height adjustment via worm gear screw jacks Type:RM 30RM 50RM 80 Material:Round barsRound rodsRound bars Diameter:6 - 30

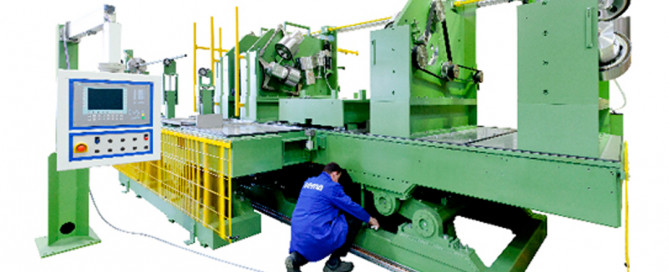

Inspection tables for tubes Tube and Bar Solutions In the area of TUBE BAR TECHNOLOGY sema Systemtechnik presents as a further development an inspection table for tubes from Ø 60 mm to Ø 340 mm. Tubes with wall thicknesses of 4 – 30 mm at a weight per meter of max. 230 KG
